The SPaRo 7TM Luminaire
The SPaRo 7™ luminaire is an LED high bay designed to replace HID and Fluorescent fixtures in warehouses, factories, machine shops, arenas, gymnasiums, big box retail, convention halls, etc. The SPaRo 7™ features and accessories provide highly efficient low glare lighting, extreme power savings, along with low installation and maintenance costs. The sleek profile, flexible design features, and simple mounting process make the SPaRo 7™ a perfect choice for architects, engineers, contractors and end users.
Affordable
From static low wattage through wireless controllable high wattage. Enjoy fast ROI.
Customizable
Available in lensed, open, narrow or wide, with or without wireless controls, and a complement of accessories.
Fast Installation
Out of the box and into action! Available with power cord and premium aircraft suspension cables.
Powder coated steel driver channel and end caps are flanked by two extruded aluminum optical channels. Multi bend formation reinforces rigidity along with small footprint makes for a very robust and lightweight fixture. LED modules are secured to an extruded aluminum thermally engineered base which also serves as a support for slide in PMMA diffuse lensing. Specular reflector engineered for hybrid general distribution with open modules is available. A quick wire splice plate is located on the back of the housing to provide easy access to electrical connections. Openings are available for aircraft cable toggles or "V" hook suspension. Zinc coated wire guards are available as an accessory.
For Canada SPaRo 7™ includes 120/347V
For USA , SPaRo 7™ includes 120/277V
3/16 AWG STW White 10FT power cord with pre-mounted strain relief and disconnect plug is available.
Choosing "SB" Control option allows for field adjustable light output and wattage via the SMART BLU™ i2.0 App.
SPaRo 7™ luminaires offer 150+ Lumens/Watt; CRI > 80; THD < 10%; PF > 99. Projected life beyond 100,000 hours. LED modules and drivers are offered with a standard 5-year warranty based on performance under normal conditions. (consult warranty for details)
10ft Premium tool-less adjustable aircraft suspension cable sets are available. V-hooks are available upon request.
NOTE: Safety chain by others is recommended for applications that may subject the fixture to possible impact.
The SPaRo 7™ is cCSAus listed for damp locations and -40°C to +40°C ambient environments. (for warmer ambient temperatures consult J2 Light). RoHS compliant. LED modules comply with IESNA LM-79 and LM-80 standards. DLC 5.1 Standard and Premium certified (Consult DLC QPL).
Downloads

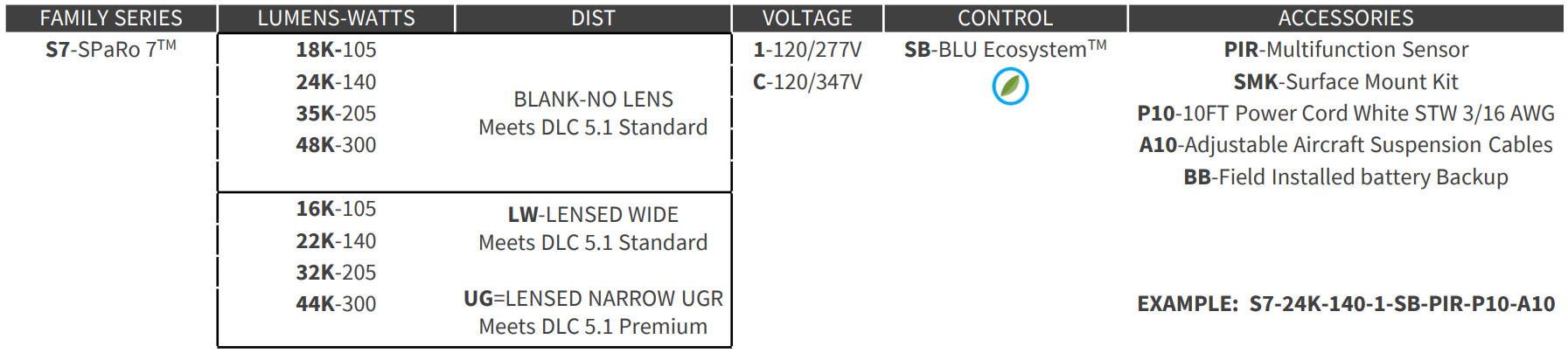

Nomenclature
FAMILY SERIES | LUMENS | DIST | VOLTAGE | CONTROL | ACCESSORIES |
S7 = SPaRo 7™ | 18K - 105 | BLANK = NO LENS Meets DLC 5.1 Standard | 1 = 120/277V | SB-BLU Ecosystem™ | PIR = Multifunction Sensor SMK = Surface Mount Kit P10 = 10FT Power Cord White STW 3/16 AWG A10 = Adjustable Aircraft Suspension Cables BB=Field Installed Battery Backup |
24K - 140 | C = 120/347V | ||||
35K - 205 | |||||
48K - 300 | |||||
48K - 300 | |||||
16K - 105 | LW = LENSED WIDE Meets DLC 5.1 Standard UG = LENSED NARROW UGR Meets DLC 5.1 Premium | EXAMPLE: S7-24K-140-1-SB-PIR-P10-A10 | |||
22K - 140 | |||||
32K - 205 | |||||
44K - 300 | |||||
