The eNVe 6TM

The eNVe 6TM troffer retrofit kit is designed to retrofit fluorescent troffers. Suitable for commercial, institutional, and retail applications. The eNVe 6TM features provide extreme power savings, along with low installation and maintenance costs. The sleek profile, flexible design features, and simple mounting process make the eNVe 6TM a perfect choice for schools, offices, and many other applications.

The eNVe 6TM is now available for wireless control via the SMART BLUTM Bluetooth Light Control system. Simply order with BLU DRiVeTM driver option. Click here for more details on SMART BLUTM.

eNVe 6TM Specifications

Construction

Punched and formed sheet steel reinforced reflector pan provides mounting locations for LED modules and driver channel on top side. Four mounting holes are provided for locations to fasten the eNVe 6TM to the back of the existing fluorescent housing. Post painted powder coat white finish. Optional accessory lens retention feet provided to allow diffusing lenses to be added in the field if desired.

Flexible Electrical

  • 120-277V, or 120/347V power input
  • 0-10V DC Dimming Driver (10%-100%)
  • BLU DRiVeTM Dimming Driver (1%-100%)

Performance

eNVe 6™ integrated troffer retrofit kits offer high efficacy (see chart); CRI>80; THD <10%; PF>95. Projected life beyond 100,000 hours. LED modules and drivers are offered with a standard 5-year warranty based on performance under normal conditions (consult warranty for details).

Optics

Open LED modules provide lambertian distribution above existing fuorescent troffer lensing. Accessory diffusion lenses may be added in the field if desired.

Compliance

The eNVe 6™ is cCSAus listed for damp locations and -20°C to +40°C ambient environments. RoHS compliant. LED modules comply with IESNA LM-79 and LM-80 standards.

NOTE 1: Specifications are subject to change without notice.
NOTE 2: Not all models are DLC certified. Consult factory.

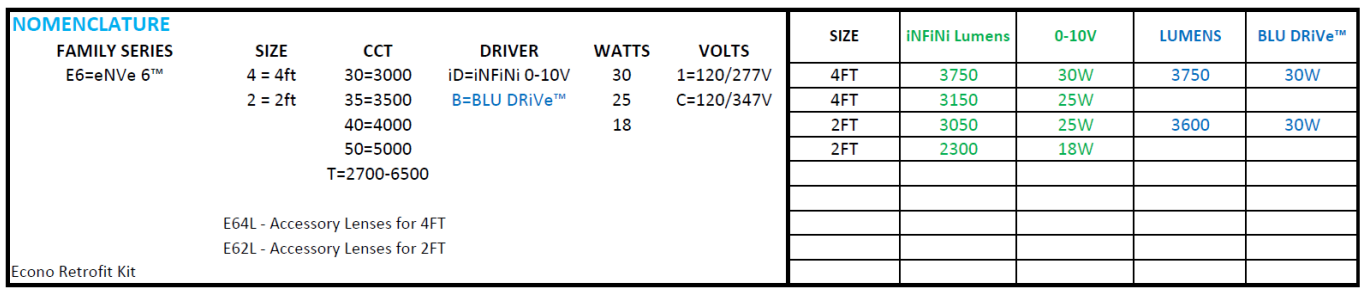

Nomenclature

FAMILY SERIESSIZECCTDRIVERWATTSVOLTAGE
e6 = eNVe 6™4 = 4ft30=3000iD = iNFiNi 0 - 10V301 = 120/277V
2 = 2ft35=3500B = BLU DRiVe™25C = 120/347V
40=400018
50=5000
T=2700-6500
E64L - Accessory Lenses for 4FT
E62L - Accessory Lenses for 2FT
SIZEiNFINi Lumens0 - 10VLUMENSBLU DRiVe™
4FT375030W375030W
4FT315025W
2FT305025W360030W
2FT230018W
