The KuDo 6T^TM

The KuDo 6T™ troffer luminaire is designed for use in lay-in T-Bar grids. Suitable for commercial, institutional, and retail applications. The KuDo 6T™ features provide highly efficient low glare lighting, extreme power savings, along with low installation and maintenance costs. The sleek profile, flexible design features, and simple mounting process make the KuDo 6T™ a perfect choice for schools, offices, and many other commercial architects, engineers, contractors, and end users.

Affordable Quality

Why take a half step when you can retrofit your old troffer into a brand new LED fixture? Replace decades old tech with modern design.

Simple Install

Patent pending "LIFT RAIL" system provides a quick and easy installation. Low cost of ownership means fast ROI.

Controllable via Smartphone

Order with SMART BLU^TM technology and choose the color of white you want at the brightness level you need and much more.

Contact Now

KuDo 6T^TM Specifications

Construction

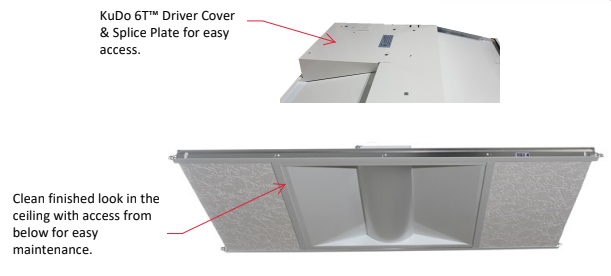

Punched and formed sheet steel reinforced housing with robust end frame. Hinge bolts with stops are mounted in threaded brass barrel inserts on the LED housing body to fit into two lift rails with locking guide slots that fit under the existing luminaire. Lift, shift and lock housing is fully hidden behind T-Bar on two opposing sides providing the seamless aesthetic of a brand new fixture. Post painted powder coat white finish. All components are accessible from below for easy maintenance. Lift rails may be screwed to T-Bar if necessary and LED housing includes safety aircraft cable. Driver platform is secured to back of LED housing. LED modules removable with one screw. Lens retention shoulders span full length of housing.

Performance

KuDo 6™ luminaires offer high efficacy (see chart); CRI >80; THD <10%; PF >99. Projected life beyond 100,000 hours. LED modules and drivers are offered with a standard 5‐year warranty based on performance under normal conditions. (consult warranty for details)

Optics

Extruded PMMA diffusers are securely mounted onto continuous metal shoulders by gently squeezing the diffuser and fitting lens grooves over the shoulder edges. Obscure lens provides extreme efficiency while offering full space distribution suitable for typical office or classroom usage. Angled side reflector panels offer pleasing aesthetic.

Electrical

120/277V, or 120/347V power input
0-10V DC Dimming Driver (10%-100%)
BLU DRiVeVe^TM Dimming Driver (1%-100%)

Compliance

The KuDo 6™ is cCSAus listed for damp locations and ‐20°C to +40°C ambient environments. RoHS compliant.

LED modules comply with IESNA

LM‐79 and LM‐80 standards.

NOTE 1: Specifications subject to change without notice.

NOTE 2: Not all models are DLC certified. Consult factory.

Downloads

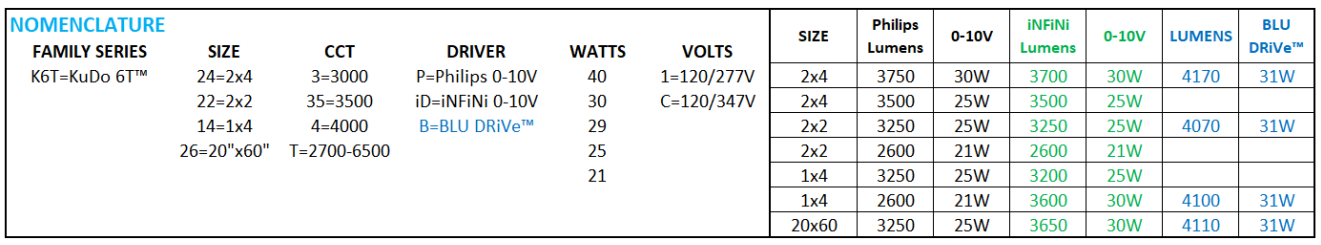

Nomenclature

FAMILY SERIES	SIZE	CCT	DRIVER	WATTS	VOLTAGE
K6T = KuDo 6T™	24 = 2 x 4	3 = 3000	P = Phillips 0 - 10V	40	1 = 120/277V
	22 = 2 x 2	35 = 3500	iD = iNFiNi 0 - 10V	30	C = 120/347V
	14 = 1 x 4	4 = 4000	B = BLU DRiVe™	29
	26 = 20" x 60"	T = 2700 - 6500		25
				21

SIZE	Phillips Lumens	0 - 10V	iNFINi Lumens	0 - 10V	LUMENS	BLU DRiVe™
2 x 4	3750	30W	3700	30W	4170	31W
2 x 4	3500	25W	3500	25W
2 x 2	3250	25W	3250	25W	4070	31W
2 x 2	2600	21W	2600	21W
1 x 4	3250	25W	3200	26W
1 x 4	2600	21W	3600	30W	4100	31W
20 x 60	3250	25W	3650	30W	4110	31W

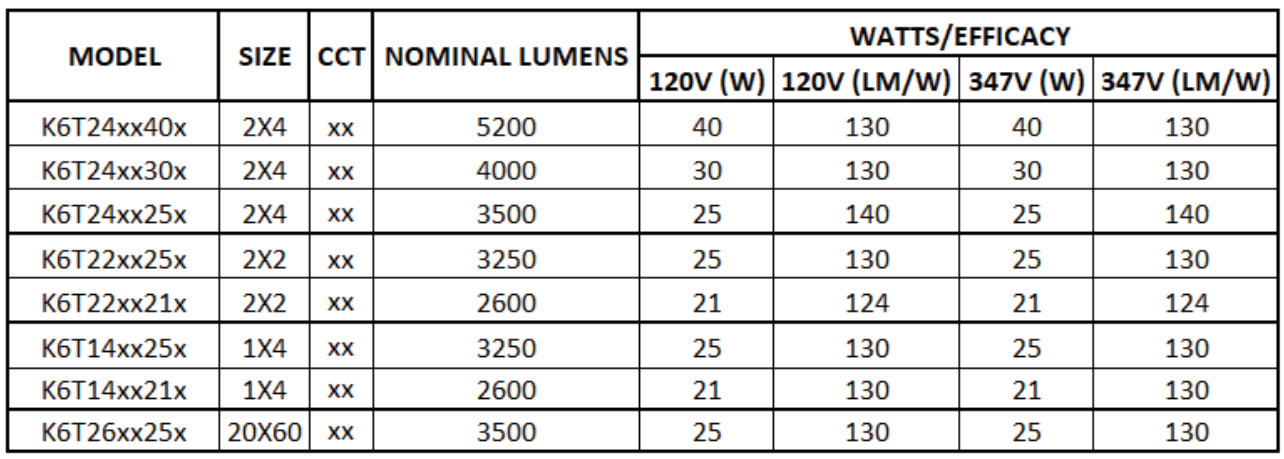

Specs

MODEL	SIZE	CCT	NOMINAL LUMENS	WATTS/EFFICACY
MODEL	SIZE	CCT	NOMINAL LUMENS					120V (W)	120V (LM/W)	347V (W)	347V (LM/W)
K6T24xx40x	2 x 4	xx	5200	40	130	40	130
K6T24xx30x	2 x 4	xx	4000	30	130	30	130
K6T24xx25x	2 x 4	xx	3500	25	140	25	140
K6T22xx25x	2 x 2	xx	3250	25	130	25	130
K6T22xx21x	2 x 2	xx	2600	21	124	21	124
K6T14xx25x	1 x 4	xx	3250	25	130	25	130
K6T14xx21x	1 x 4	xx	2600	21	130	21	130
K6T26xx25x	20 x 60	xx	3500	25	130	25	130
